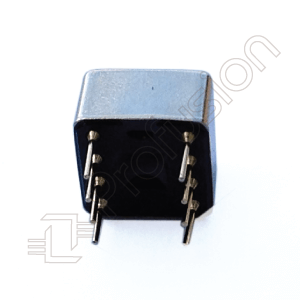

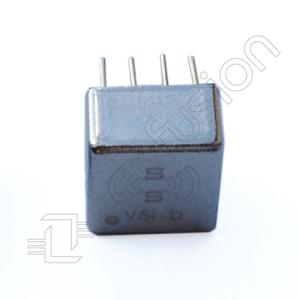

V5I-S 单混合音频运算放大器

技术规格

电路数 Number of Circuits	1
电源电压（最低） Supply Voltage (minimum)	±5V
电源电压（最大） Supply Voltage (maximum)	±16V
输入失调电压 Input Offset Voltage	3mV
输入失调电流 Input Offset Current	2nA
输入偏置电流 Input Bias Current	3nA
电源电流 Supply Current	5mA
增益带宽积 Gain Bandwidth product	50MHz
压摆率 Slew Rate	45V/μs
噪音 Noise

详细描述

请注意，显示的价格基于单个运算放大器而不是一组两个。

新开发的 Burson V5i 是一种混合音频运算放大器，它既是部分 IC 又是分立的。它带有其大哥 V5 离散运算放大器的声音特征，被许多人视为音频应用中的参考。

Supreme Sound V5i 提供 50Mhz 的带宽 - 这超出了人耳可以检测到的 20KHz！Burson 真正将运算放大器推向了音频质量的新领域。

Please note, the pricing shown is based on individual opamps and not packs of two.

The newly developed Burson V5i is a hybrid audio opamp, which is both partially IC and discrete. It bears the sonic signature of its bigger brother, the V5 discrete opamp, considered by many as the reference in audio application.

The Supreme Sound V5i offers bandwidth of 50Mhz - that's above and beyond the 20KHz that the human ear can detect! Burson has truly pushed the op-amp into new realms of audio quality.
