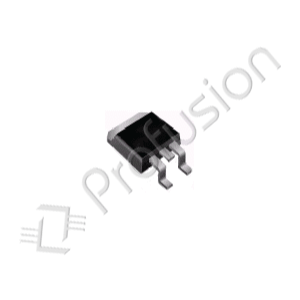

LD1117L33TN3AR LDO稳压器

技术规格

电压 Voltage	3.3V
家庭电压范围 Family Voltage Range	1.2 to 5
电源电压（最大） Supply Voltage (maximum)	15V
输出电流 Output Current	800mA
压降电压 Drop-out Voltage	1.15V
参考电压容差 Voltage Reference Tolerance	2%
纹波抑制比 Ripple Rejection Ratio	75dB
输出可调 Output Adjustable	Yes
噪声旁路终端 Noise Bypass Terminal	No
输出噪声电压 Output Noise Voltage	0.3mV
静态电流 Quiescent Current	2mA
输出电容 Output Capacitor

UTC LD1117 是一款低压差、3 端子、正电压调节器，旨在提供高达 800mA 的输出电流。

The UTC LD1117 is a low dropout, 3-terminal, positive voltage regulator designed to provide output current up to 800mA.
