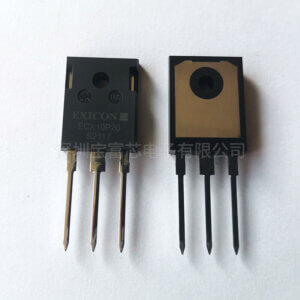

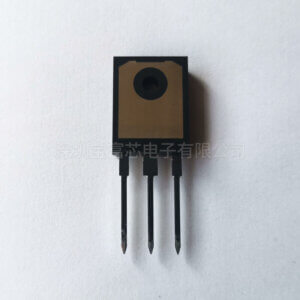

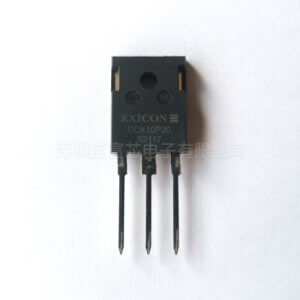

ECX10P20-S 塑封MOSFET大功率音频功放对管

技术规格

类型 Type	Pch
漏-源极电压 Drain Source Voltage	-200V
漏极电流 Drain Current	-8A
栅-源极电压 Gate-Source Voltage	±14V
功率 Power	125W

详细描述

EXICON Mosfets 专为高功率线性应用而设计。

它们提供高电压能力、高转换率和低失真，使它们成为音频放大器设计的理想选择。

无二次击穿和热失控，使它们非常可靠，并且无需保护电路。

这些优势连同宽带宽、低驱动要求和易于并联，使得具有出色声音特性的稳健放大器的简单构造成为可能。

ECX10P20 是 BUZ905P、BUZ906P、ALF08P16V、ALF08P20V、2SJ162 或 2SJ352 的合适等效物、替代品或代替品。

S 版本已经过测试并根据如下所示的技术规格分级为色带，以确保紧密匹配。我们不能根据要求保证特定的色带，但订单将从相同的色带提供。如果您有特殊要求，请在订购前与我们联系。

EXICON Mosfets have been designed specifically for high power linear use.

They offer high voltage capability, high slew rate and low distortion, making them the ideal choice for audio amplifier design.

Freedom from secondary breakdown and thermal runaway make them extremely reliable and remove the need for protection circuitry.

These advantages together with wide bandwidth, low drive requirements, and ease of paralleling make it possible for the simple construction of robust amplifiers with excellent sonic characteristics.

The ECX10P20 is a suitable equivalent, replacement or substitute for the BUZ905P, BUZ906P, ALF08P16V, ALF08P20V, 2SJ162 or 2SJ352.

The S version has been tested and graded into colour bands based on the technical spec shown below to ensure close matching. We cannot guarantee a specific colour band upon request but orders will be supplied from the same colour band. If you have a particular requirement, please contact us before ordering.

规格书和资料

Data SheetSelected MOSFET Spec
